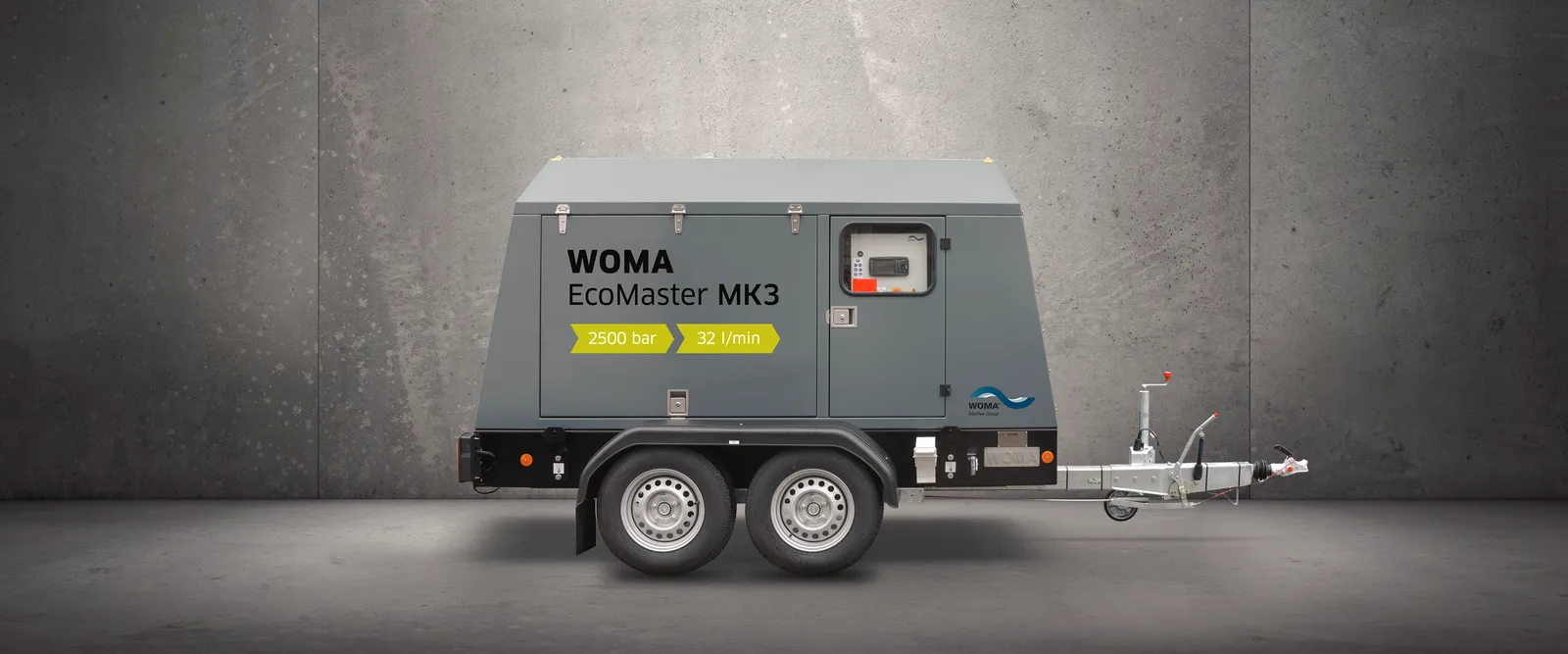

EcoMaster MK3 2500-2800bar

Xuất xứ: Woma/Đức

Thời gian giao hàng: Theo tiêu chuẩn nhà sản xuất (vui lòng liên hệ)

Chứng chỉ: CO,CQ bản gốc

EcoMaster MK3: Technical Data and Configuration Options

Technical Data
190M Operating pressure (bar)	2,500 \| 2,800 \| 3,000
190M flow rate (l/min)	26 \| 20 \| 18
250M operating pressure (bar)	2,500 \| 2,800 \| 3,000
250M flow rate (l/min)	32 \| 25 \| 21
Motortype	Combustion engine (diesel)
Max. motor rating (kW)	175
Diesel tank (l)	ca. 200
Water tank (l)	ca. 150
Weight (Stage 5 Version) incl. operating material (kg)	ca. 2,980
Dimensions (L × B × H) (mm)	4,450 × 2,030 × 2,320

Configuration options
Control interface water tool EX-i
Additional remote control connection for use with HP release station with emergency stop (Advanced and Expert only) or external emergency stop (all device variants)
Operating mode extension: Maintaining rotation speed after high-pressure off
Operating mode extension: Automatic speed control for dump gun variants
Operating mode extension: High-Pressure-On-Off via control cabinet
Operating mode extension: Dump-gun operation for Expert variants
Telematic (in combination with a telematic contract)
Spark arrester in the exhaust pipe (not for stages 4 and 5)
Air shut-off damper (Chalwyn-Valve)
Crane lugs
Weather protection covers
